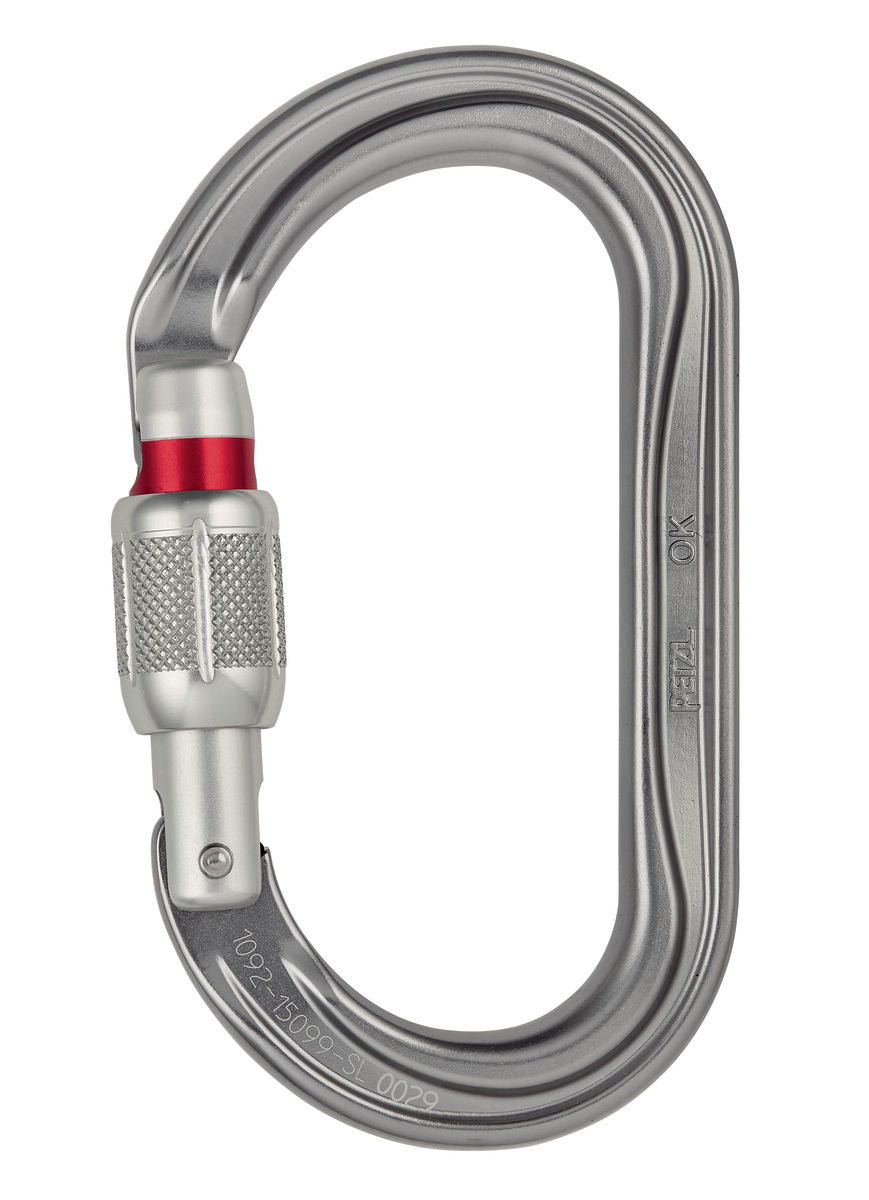

Oval carabiner for use with pulleys and ascenders
Lightweight aluminum carabiner with a symmetrical oval shape that allows optimal loading of devices with a wide cross-section, such as pulleys, ascenders and progress-capture pulleys. • Available in three locking systems (SCREW-LOCK, TRIACT-LOCK and BALL-LOCK)
Detailed description
Description
- Symmetrical oval shape allows optimal loading of devices with a wide cross-section, such as pulleys, ascenders and progress-capture pulleys
- Easier handling:
- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system helps avoid any involuntary snagging of the carabiner
- the H cross-section contributes to better grip, protects the markings from abrasion and reduces weight
- Available in three different locking systems:
- SCREW-LOCK: easy-to-open system can be locked or not according to need. The red indicator provides a visual warning when the carabiner is unlocked. This system is ideal for harsh environments where contaminants (mud, ice) could cause an automatic locking system to jam
- TRIACT-LOCK: automatic locking system designed for frequent manipulation. The triple-action opening consists of raising and turning the sleeve, then pressing on the gate
- BALL-LOCK: automatic locking system designed for frequent manipulation, with lock indicator. The triple-action opening consists of pressing on the green indicator, turning the sleeve, then pressing on the gate. The green button indicates when the gate is locked.
Specifications
- Material(s): Aluminum
- Certification(s): CE EN 12275, UIAA, CE EN 362, EAC, GB/T 23469 / B
References
| References |
M33A SL |
M33A TL |
M33A BL |
| Weight |
70 g |
75 g |
75 g |
| Locking system |
SCREW-LOCK |
TRIACT-LOCK |
BALL-LOCK |
| Color(s) |
Gray |
Gray |
Gray |
| Major axis strength |
25 kN |
25 kN |
25 kN |
| Minor axis strength |
8 kN |
8 kN |
8 kN |
| Open gate strength |
7 kN |
7 kN |
7 kN |
| Gate opening |
22 mm |
22 mm |
23 mm |
| Guarantee |
3 years |
3 years |
3 years |
| Inner Pack Count |
1 |
1 |
1 |
